Paint Spray Walls

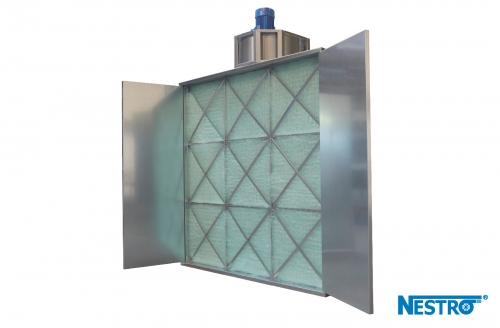

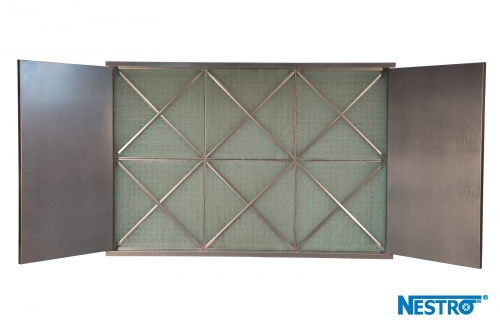

Paint spray extr. wall E 1616 1600x1600 mm, 5000 m³/h

Paint Spray Wall E 1616 "Lacky" Dry separation, incl. 2 folding deflectors 800 mm and mounted fan, pressure at free purging 400 PaATTENTION: Without controls - Please order the control switch separately if needed Dimensions L x W x H (mm) 850 x 1600 x 1600 Discharge Volume (m³/h) 5000 Motor EX (kW) 2.6 Suction Connection Ø (mm) 350

Paint spray extr. wall E 1616 Andreae prefilter, 5000 m³/h

Paint Spray Wall E 1616 "Lacky" with Andreae-Prefilter dry separation, incl. 2 folding deflectors 800 mm and mounted fan, exhaust pipe Ø 350 mm, pressure at free purging 400 Pa, prefilter cartonATTENTION: Without controls - Please order the control switch separately if needed Dimensions L x W x H (mm) 850 x 1600 x 1600 Discharge Volume (m³/h) 5000 Motor EX (kW) 2.6 Suction Connection Ø (mm) 350

Paint spray extr. wall E 2416 2400x1600 mm, 7000 m³/h

Paint Spray Wall E 2416  (Illustration similar)  dry separation, incl. 2 folding deflectors 800 mm and mounted fan, pressure at free purging 400 PaATTENTION: Without controls - Please order the control switch separately if needed Dimensions L x W x H (mm) 850 x 2400 x 1600 Discharge Volume (m³/h) 7000 Motor EX (kW) 2.6 Suction Connection Ø (mm) 400

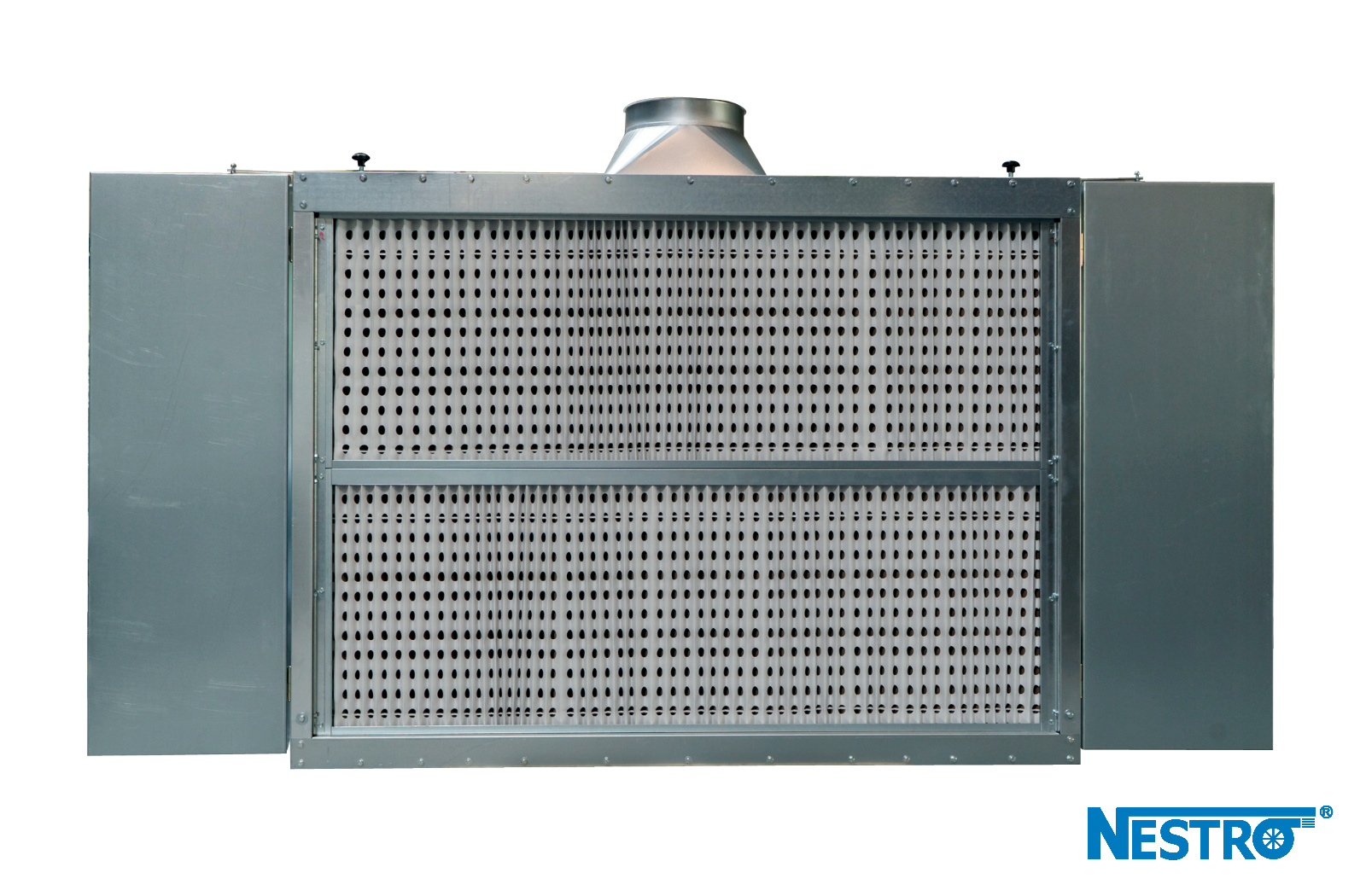

Paint spray extr. wall E 2416 Andreae prefilter, 7000 m³/h

Paint Spray Wall E 2416 with Andreae Prefilter (Illustration similar)  dry separation, incl. 2 folding deflectors 800 mm and mounted fan, pressure at free purging 400 Pa, prefilter cartonATTENTION: Without controls - Please order the control switch separately if needed Dimensions L x W x H (mm) 850 x 2400 x 1600 Discharge Volume (m³/h) 7000 Motor EX (kW) 2.6 Suction Connection Ø (mm) 400

Paint spray extr. wall E 2424 2400x2400 mm, 7000 m³/h

Paint Spray Extraction Unit E 2424 Dry separation, incl. 2 folding deflectors 800 mm and mounted fan, pressure at free purging 400 Pa ATTENTION: Without controls - Please order the control switch separately if needed Dimensions L x W x H (mm) 850 x 2400 x 2400 Discharge Volume (m³/h) 7000 Motor EX (kW) 2.6 Suction Connection Ø (mm) 400

Paint spray extr. wall E 2424 Andreae prefilter, 7000 m³/h

Paint Spray Wall E 2424 with Andreae Prefilter  dry separation, incl. 2 folding deflectors 800 mm and mounted fan, pressure at free purging 400 Pa, prefilter carton ATTENTION: Without controls - Please order the control switch separately if needed Dimensions L x W x H (mm) 850 x 2400 x 2400 Discharge Volume (m³/h) 7000 Motor EX (kW) 2.6 Suction Connection Ø (mm) 400
